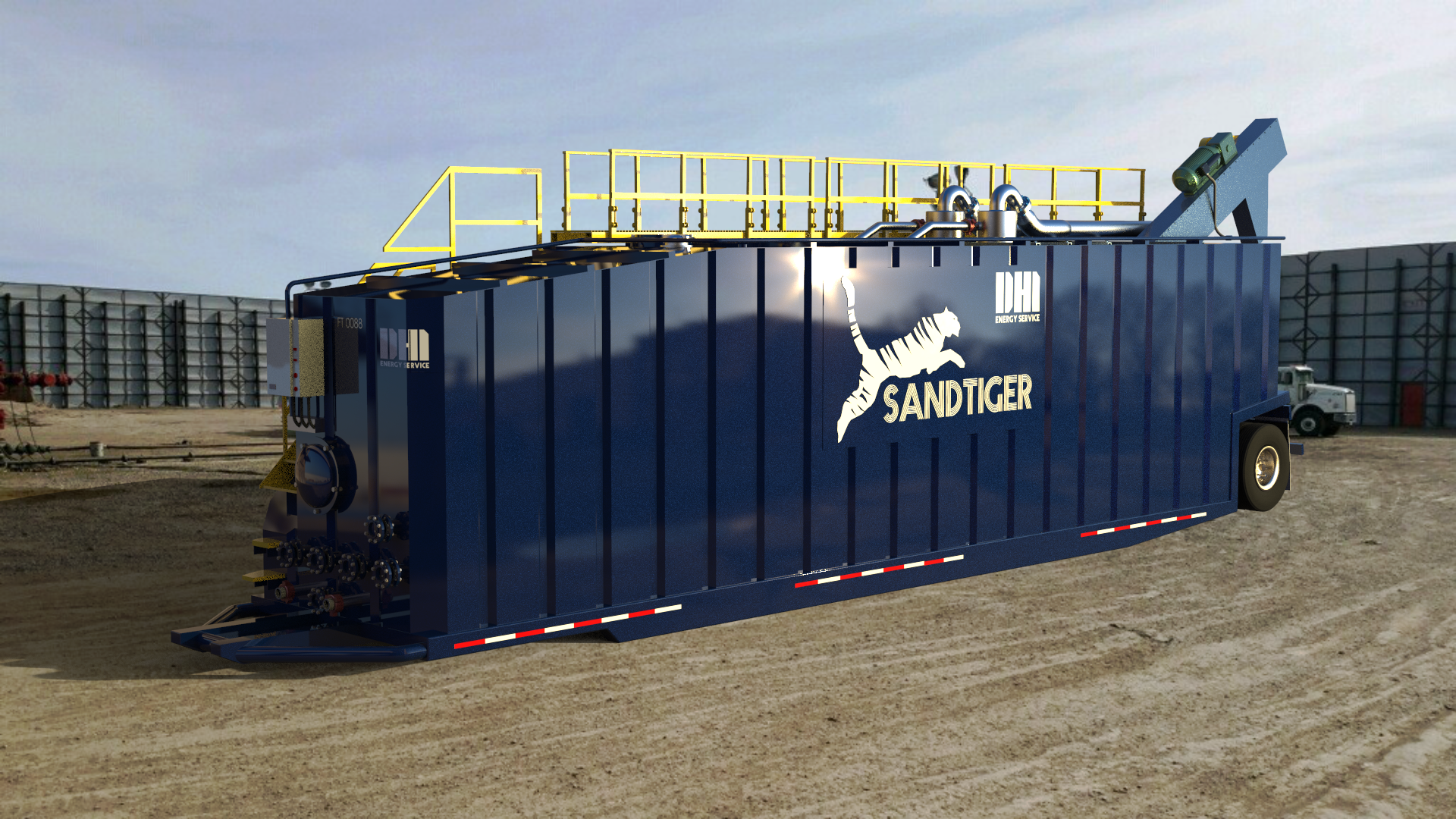

SAND TIGER Mark III



The new DHI Sand Tiger III (TM) is a system that allows full separation of sand from liquids in the flow back and well clean up operations on a well site.

Equipped with high efficiency patented cyclonic gas busters minimizing spray on location while separating sand effectively from liquids as it flows to the separation hopper. The gas busters are able to duct gas emissions free of liquids away from the tank to a safe location or combustion equipment for disposal. This reduces the exposure to personnel in the area to flammable and potentially toxic gasses.

A patented drag chain removal system draws sand from the well effluent allowing it to be collected in bins etc. both solids and liquids can be disposed of or re-used at a low recovery cost. The Sand Tiger has intrinsically safe electrical components and fitted with a 25 HP 480V drag system producing over 26,000 ft.lbs of torque on the chain system with a 5-X safety factor. The unit is capable of handling over 1,000,000 lbs of sand per day. Liquid flow rates are in excess of 15,000 bbl/day.

To enhance sand flow through the system the unit is equipped with vibration generators to ensure sand movement.

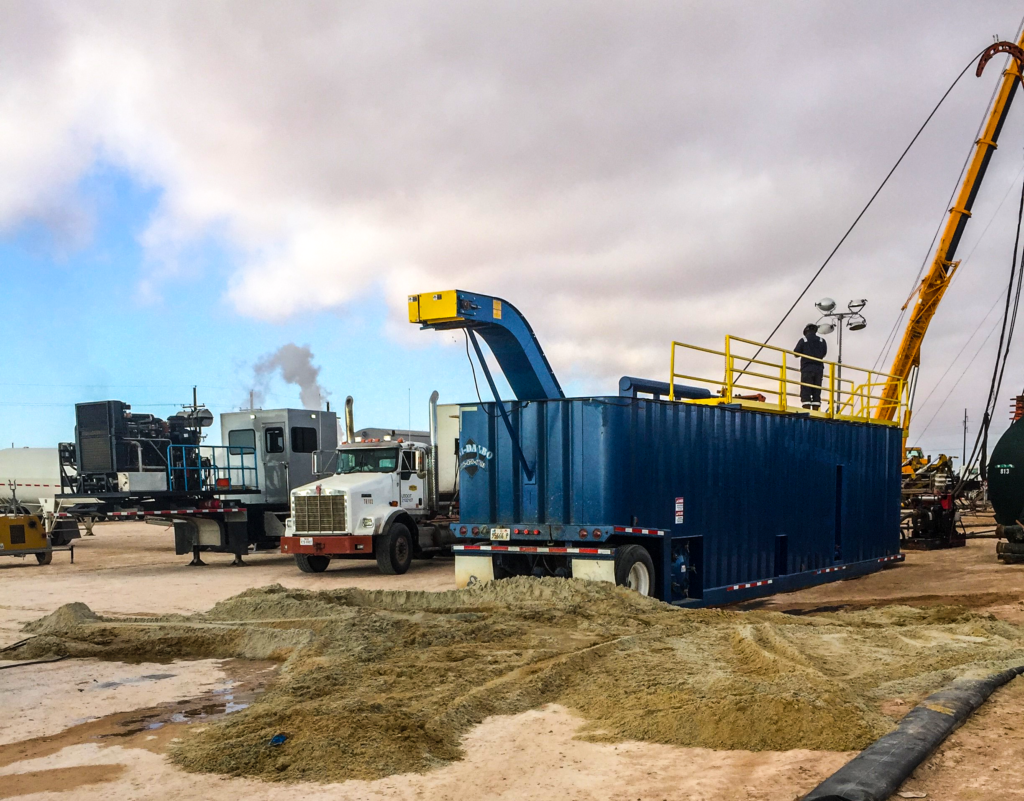

The process produces clean sand dropped into collection bins and liquids may flow to a DHI oil skimmer for separation of any oil or condensate in the flow-back process.

Key Customer Benefits

  • Sand Removal from flow-back effluent on site at the time of recovery

  • Reduced disposal costs

  • Sand may be re-cycled for other applications

  • Liquids are cleaner and may be re-cycled for use during frac operations.

  • Sand production is quantifiable

  • Safe and less labor intensive
